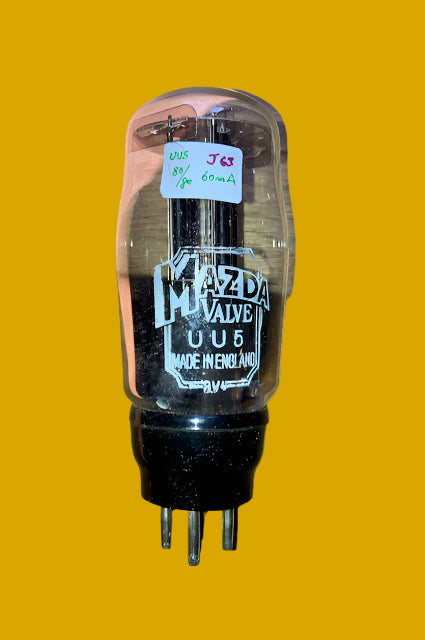

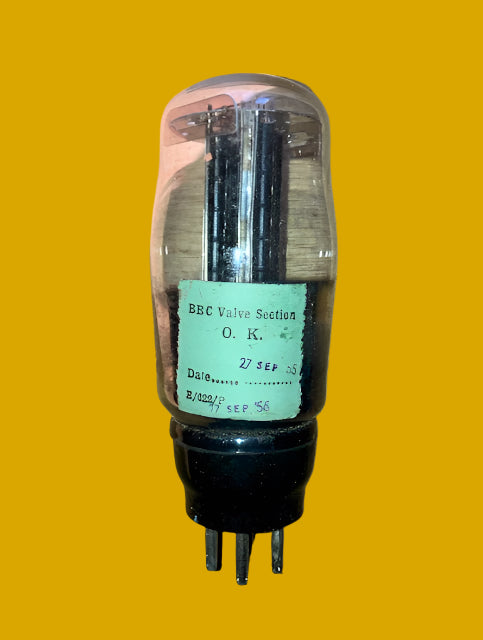

UU5, MAZDA, EX BBC VALVE STORES DATED 1955

UU5, MAZDA,  EX BBC VALVE STORES, DATED 1955

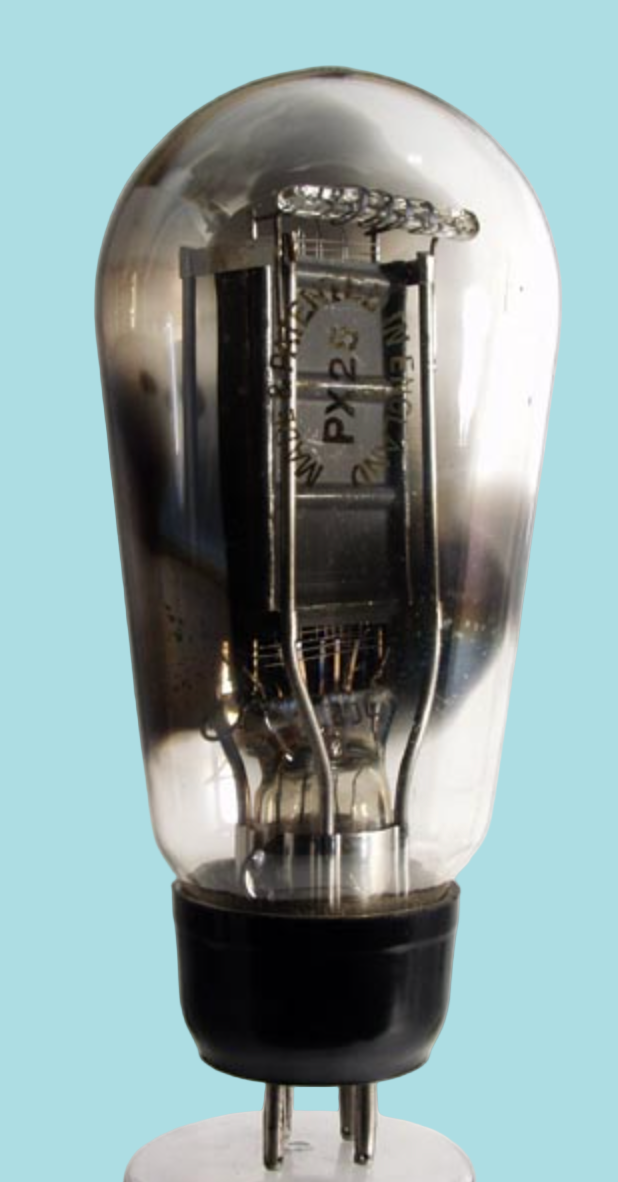

Showing superb performance it has a place alongside that other famed B4 based produce the PX4 & PX25.


Device test data: Ia = 60.0mA range, GOOD  A1 80 / A2 80.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range.  This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100.  The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range observed.
