AUDIO VALVES: 6X5GT EZ35 CV574 U147 U70

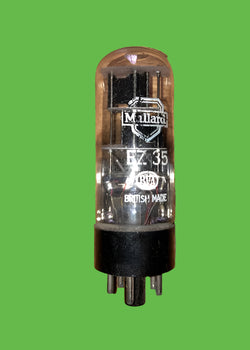

The EZ35 is a standard HT rectifier for low power AC mains driven equipment. The output of a centre tapped transformer would be applied to the anodes, the rating given is 325-0-325, the common cathode would be the output for the rectified voltage.
An effective series resistance of 350 Ohms was required to limit surges and the reservoir capacitor had to be restricted to 16 µF. The wide glass tube envelope is approximately 30 mm in diameter and, excluding the IO base pins, is 77 mm tin height. Type EZ35 was first introduced in 1946. Today, the 6X5 finds use in many hifi pre-amplifiers.
6X5GT, BRIMAR, BLACK BASE, WHITE PRINT, 1H8 432, AUGUST 1958 PRODUCTION 6X5
6X5GT, MULLARD, EU2 J5K, MULLARD TOTTENHAM, (TUNGSRAM), NOVEMBER 1955 PRODUCTION 6X5
6X5GT, RCA, JAN, MILITARY SPEC, VT-126-B, VT126, BLACK BASE, WHITE PRINT, K5E, SEPT-OCT 1943 PRODUCTION, 6X5

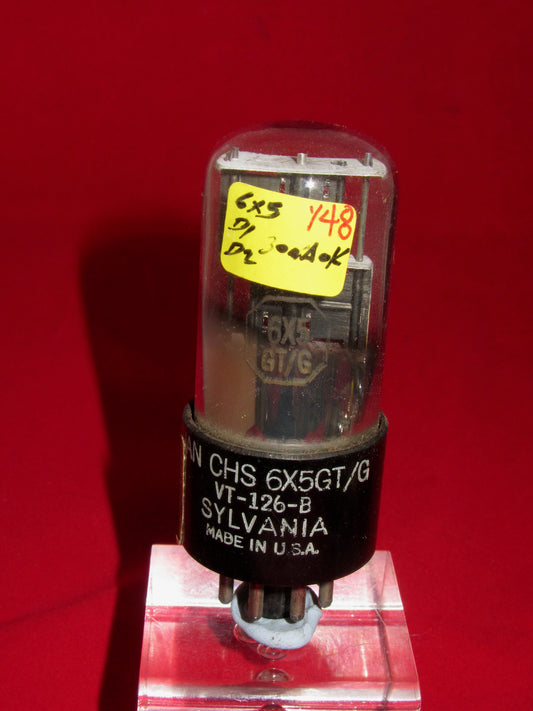

6X5GT, SYLVANIA, JAN, MILITARY SPEC, VT-126-B, VT126, BLACK BASE, WHITE PRINT 6X5
6X5GT, SYLVANIA, JAN, MILITARY SPEC, VT-126-B, VT126, BLACK BASE, WHITE PRINT, MARCH 1944 PRODUCTION6X5
