AUDIO VALVES: ECC32 CV181 CV1988 13D2 B65 6SN7GT 6SN7 TWIN TRIODE

The 6SN7GT double triode valve is electrically equal to a pair of the 6J5 triodes in a single envelope. The construction uses a glass pinch and the two separate electrode structures are visible through the envelope. The wide glass tube envelope is 27 mm in diameter and excluding the IO base pin length, stands 63 mm high. Type 6SN7GT was first introduced in 1940.

The B65 Marconi-Osram audio variant with it’s distinctive metal clad octal base was first introduced in 1948.

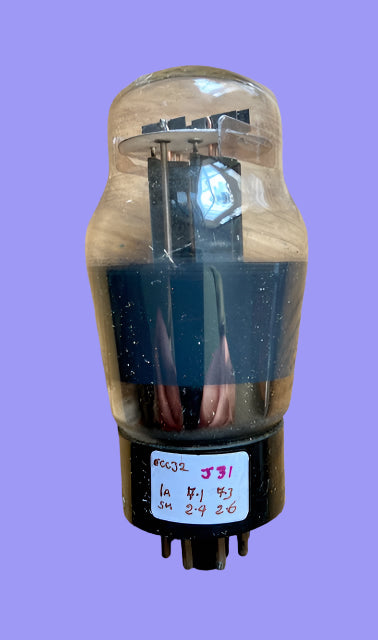

The Mullard ECC32 ST shaped variant is perhaps the first variant as it was issued in late 1939, long before the advent of the Noval valve base and the dinky ECC83, the ECC32 was the valve of choice for low noise audio applications. Mullard describe the ECC32 as a double triode with separate cathodes for use as a paraphrase AF amplifier and in phase inverters. The electrode assembly although smaller than other double triodes of the period has supreme rigidity due to the glass pinch mounting mode. The curved anodes do much to increase surface area allowing impressive anode dissipation whilst enhancing rigidity and the sonic purity this can provide.

This Octal triode is favoured for many guitar and classic valve amplifiers, the most renowned being the Leak TL12 0.1 of 1946/7, however, it is surprising which other well regarded and modern exotica also demands fine devices of this type:-

Aesthetix Calypso
Antique Sound Lab AQ1006 Mono Block amps
Atma-Sphere MA-1 Mk II.2 Amplifier
Audio Aero Prestige mono amps
Audio Note 300B amp
Audio Note conquest
Audio Aero Capitole
Cary CAD 300SEI
CARY SLP 05 preamp
CJ MV55
Conrad-Johnson CAV-50 intergrated amp
Dehavilland Ultraverve linestage
Deja Vu Audio Type 45 amp
Modwright Sony 5400ES
Oppo/Modwright BDP-95
Rogue Audio 99 Magnum
Singlepower headphone amp
Singlepower PPX3-SLAM
Singlepower SDS-XLR
TransTRAC amp
VAC Renaissance 30/30 MKIII
Yagin CD3 Tube buffer
Yaqin MS-34C
Woo WA-5

E

ECC32

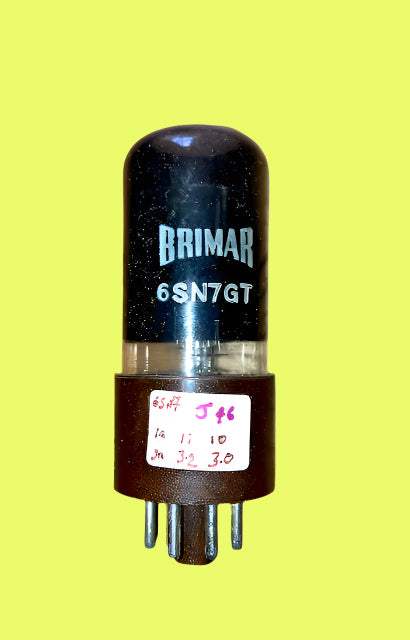

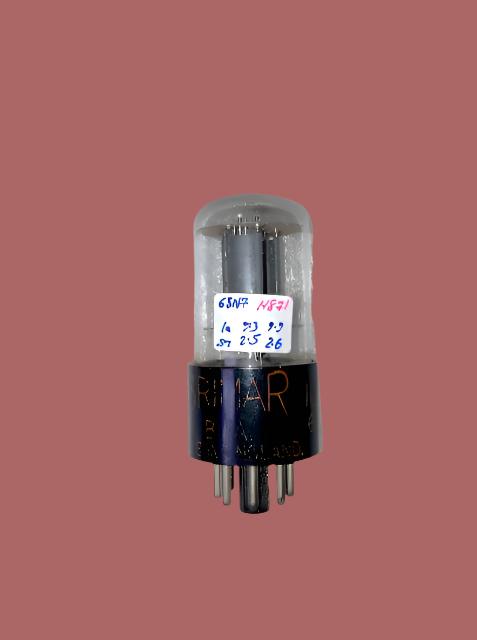

6SN7GT BRIMAR FOOTSCRAY ORANGE PRINT EX BBC FAT BLACK BASE DATED APRIL 1953 6SN7

6SN7GT BRIMAR FOOTSCRAY ORANGE PRINT EX BBC FAT BLACK BASE DATED APRIL 1953 6SN7
6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE BASE PRINT, CLEAR GLASS, FOOTSCRAY AUGUST 1952 MANUFACTURE, 6SN7

6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE BASE PRINT, CLEAR GLASS, FOOTSCRAY AUGUST 1952 MANUFACTURE, 6SN7
6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE BASE PRINT, CLEAR GLASS, FOOTSCRAY OCTOBER 1952 MANUFACTURE, 6SN7

6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE BASE PRINT, CLEAR GLASS, FOOTSCRAY OCTOBER 1952 MANUFACTURE, 6SN7
6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE PRINT, FOOTSCRAY AUGUST 1954 MANUFACTURE 6SN7

6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE PRINT, FOOTSCRAY AUGUST 1954 MANUFACTURE 6SN7
6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE PRINT, FOOTSCRAY MANUFACTURE 6SN7

6SN7GT, BRIMAR, FAT BLACK BASE, ORANGE PRINT, FOOTSCRAY MANUFACTURE 6SN7
6SN7GT, BRIMAR, FAT BLACK BASE, WHITE BASE PRINT, CLEAR GLASS, FOOTSCRAY OCTOBER 1952 MANUFACTURE, 6SN7

6SN7GT, BRIMAR, FAT BLACK BASE, WHITE BASE PRINT, CLEAR GLASS, FOOTSCRAY OCTOBER 1952 MANUFACTURE, 6SN7
6SN7GT, GE CANADA, CLEAR GLASS, FAT BASE, RED BASE PRINT, CANADA 1953 PRODUCTION, 6SN7

6SN7GT, GE CANADA, CLEAR GLASS, FAT BASE, RED BASE PRINT, CANADA 1953 PRODUCTION, 6SN7
6SN7GT, GE, CLEAR GLASS, FAT BASE, SQUAT ENVELOPE, OWENSBOROUGH, JULY 1956 PRODUCTION, 6SN7

6SN7GT, GE, CLEAR GLASS, FAT BASE, SQUAT ENVELOPE, OWENSBOROUGH, JULY 1956 PRODUCTION, 6SN7
6SN7GT, MOTOROLA, CLEAR GLASS, 3 RIB CHARCOAL PLATE, YELLOW BASE PRINT, 6SN7

6SN7GT, MOTOROLA, CLEAR GLASS, 3 RIB CHARCOAL PLATE, YELLOW BASE PRINT, 6SN7

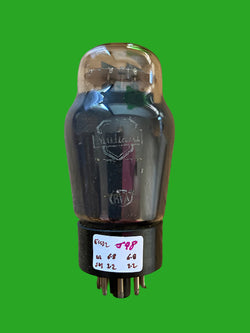

6SN7GT, Mullard, Made in Holland, Fat Black Base, Clear Glass, r93 L8K, November 1958 Manufacture, 6SN7

6SN7GT, Mullard, Made in Holland, Fat Black Base, Clear Glass, r93 L8K, November 1958 Manufacture, 6SN7

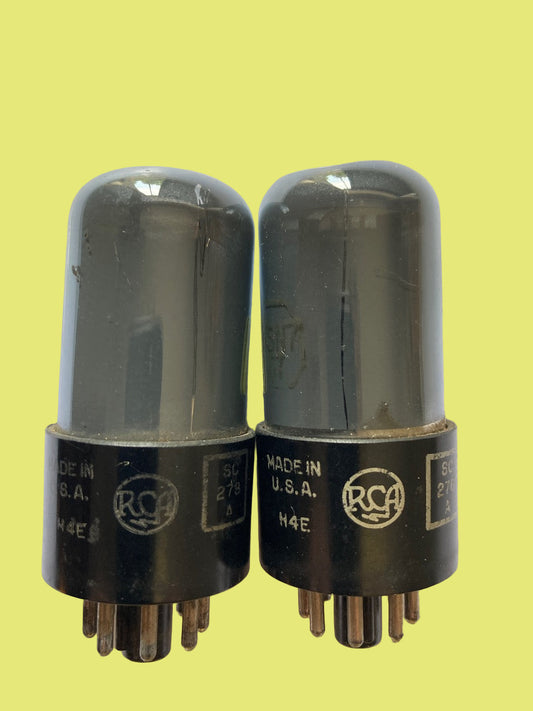

6SN7GT, RCA, CLEAR GLASS, 3 RIB CHARCOAL PLATE, SMALL LOGO, FEB 1943 PRODUCTION, 6SN7

6SN7GT, RCA, CLEAR GLASS, 3 RIB CHARCOAL PLATE, SMALL LOGO, FEB 1943 PRODUCTION, 6SN7

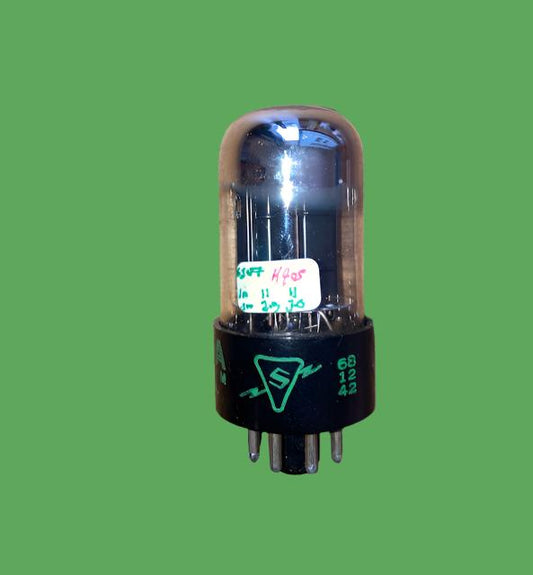

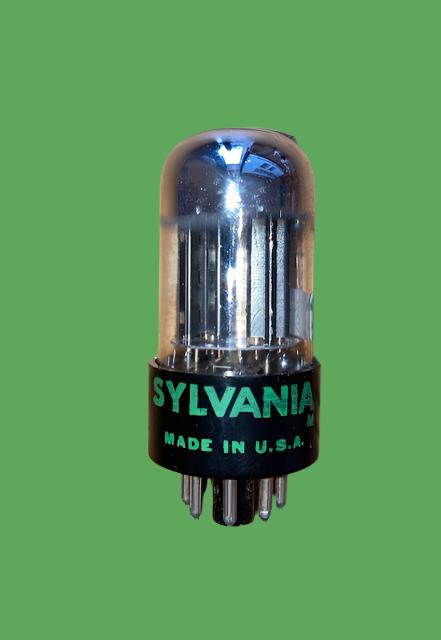

6SN7GT, SYLVANIA,CHROME DOME, 3 RIB, T PLATE, GREEN PRINT, DECEMBER 1968 PRODUCTION, 6SN7

6SN7GT, SYLVANIA,CHROME DOME, 3 RIB, T PLATE, GREEN PRINT, DECEMBER 1968 PRODUCTION, 6SN7
6SN7GT, TUNG-SOL, V 6SN7GT, TUNG-SOL, VT-231, GREY GLASS, FAT BASE, ROUND BLACK PLATE, AUGUST 1944 PRODUCTION, 6SN7

6SN7GT, TUNG-SOL, V 6SN7GT, TUNG-SOL, VT-231, GREY GLASS, FAT BASE, ROUND BLACK PLATE, AUGUST 1944 PRODUCTION, 6SN7
6SN7GT, WESTINGHOUSE, CANADA, JAN, MILITARY,CLEAR GLASS, FAT BLACK BASE, WHITE BASE PRINT, JANUARY 1946 PRODUCTION, 6SN7

6SN7GT, WESTINGHOUSE, CANADA, JAN, MILITARY,CLEAR GLASS, FAT BLACK BASE, WHITE BASE PRINT, JANUARY 1946 PRODUCTION, 6SN7
6SN7GTB, GE CANADA MANUFACTURED, MARCONI RADIOTRON, MATCHED PAIR, RED BASE PRINT, 1959 PRODUCTION

6SN7GTB, GE CANADA MANUFACTURED, MARCONI RADIOTRON, MATCHED PAIR, RED BASE PRINT, 1959 PRODUCTION
6SN7GTB, GE CANADA, CLEAR GLASS, FAT BASE, SQUAT ENVELOPE, CANADA 1959 PRODUCTION, 6SN7

6SN7GTB, GE CANADA, CLEAR GLASS, FAT BASE, SQUAT ENVELOPE, CANADA 1959 PRODUCTION, 6SN7
CV1988, BRIMAR, FOOTSCRAY, MIL SPEC 6SN7GT, BROWN MICANOL BASE, WHITE BASE MARKINGS, FAINT, WITH ENVELOPE ETCHED DATE CODE FOR FOR APRIL 1953, ECC32, 6SN7

CV1988, BRIMAR, FOOTSCRAY, MIL SPEC 6SN7GT, BROWN MICANOL BASE, WHITE BASE MARKINGS, FAINT, WITH ENVELOPE ETCHED DATE CODE FOR FOR APRIL 1953, ECC32, 6SN7
CV1988, GEC, HAMMERSMITH, MIL SPEC 6SN7GT, BROWN MICANOL BASE, WHITE CARTOUCHE, JULY 1956 HAMMERSMITH MANUFACTURE, ECC32, 6SN7

CV1988, GEC, HAMMERSMITH, MIL SPEC 6SN7GT, BROWN MICANOL BASE, WHITE CARTOUCHE, JULY 1956 HAMMERSMITH MANUFACTURE, ECC32, 6SN7
CV1988, STC PAIGNTON, MIL SPEC 6SN7GT, CLEAR GLASS, FAT BLACK BASE, ORANGE PRINT, FEBRUARY 1951 MANUFACTURE 6SN7

CV1988, STC PAIGNTON, MIL SPEC 6SN7GT, CLEAR GLASS, FAT BLACK BASE, ORANGE PRINT, FEBRUARY 1951 MANUFACTURE 6SN7

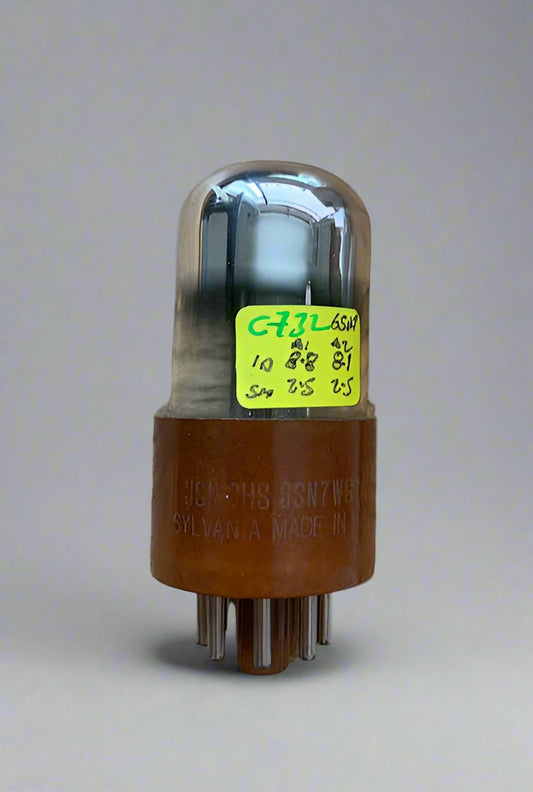

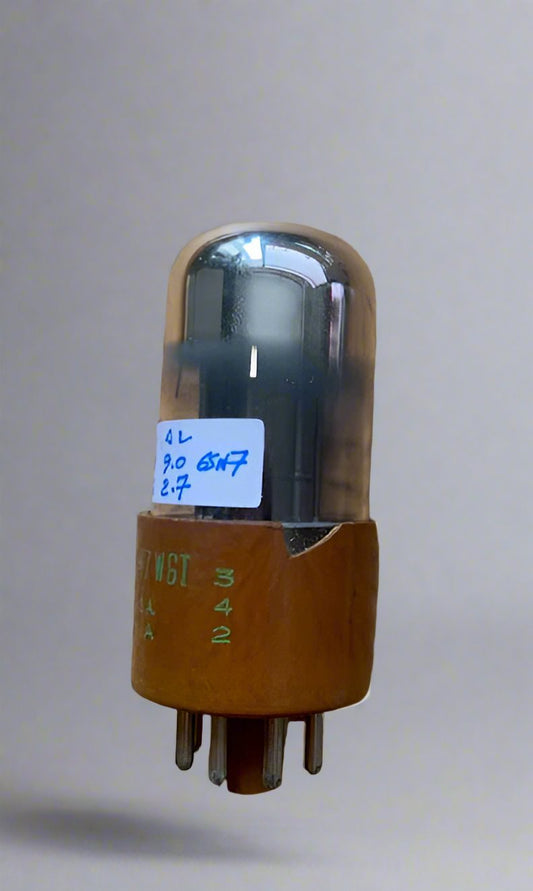

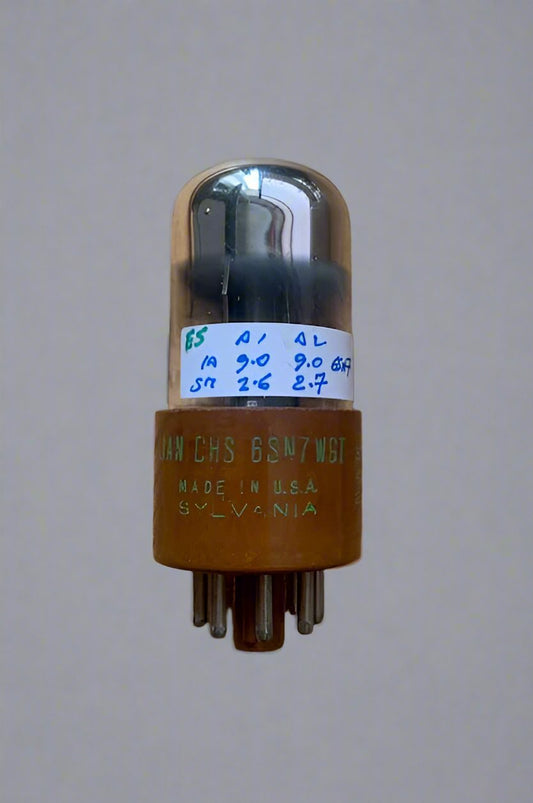

JAN-CHS-6SN7WGT, 6SN7W, SYLVANIA, SHORT BOTTLE, GREEN PRINT, USN, SEPTEMBER 1945 PRODUCTION, 6SN7

JAN-CHS-6SN7WGT, 6SN7W, SYLVANIA, SHORT BOTTLE, GREEN PRINT, USN, SEPTEMBER 1945 PRODUCTION, 6SN7
JAN-CHS-6SN7WGTA, 6SN7W, SYLVANIA, SHORT BOTTLE, GREEN PRINT, USN, OCTOBER 1954 PRODUCTION, 6SN7

JAN-CHS-6SN7WGTA, 6SN7W, SYLVANIA, SHORT BOTTLE, GREEN PRINT, USN, OCTOBER 1954 PRODUCTION, 6SN7
