AUDIO VALVES: 6X5G CV572 10E/582 EZ35 U147 U70 VT-126A ST ENVELOPE RECTIFIER

The 6X5G full wave rectifier is unusual in it's use of  a common cathode with anodes mounted vertically over the cathode tube and the valve is rated for pulse operation up to an impressive PIV of 22 kV.

In routine use the maximum reservoir capacitor is limited to 4 µF and the minimum series resistance has to be 150 Ohms.

The classic envelope is approximately 36 mm in diameter and excluding the IO base pins is approximately 88 mm tall.

Type 6X5G was first introduced in 1936.



6X5G, COSSOR, RED PRINT,

6X5G, COSSOR, RED PRINT,

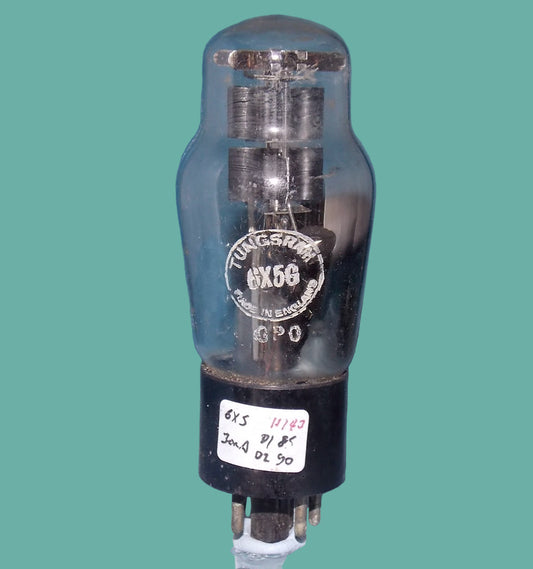

6X5G, TUNGSRAM, DOLLIS HILL GPO, 1951

6X5G, TUNGSRAM, DOLLIS HILL GPO, 1951
6X5G, TUNGSRAM, DOLLIS HILL GPO, 1951

6X5G, TUNGSRAM, DOLLIS HILL GPO, 1951
6X5G, TUNGSRAM, SLIGHTLY SMUDGED PRINT, GPO, DOLLIS HILL STORES, 1951

6X5G, TUNGSRAM, SLIGHTLY SMUDGED PRINT, GPO, DOLLIS HILL STORES, 1951

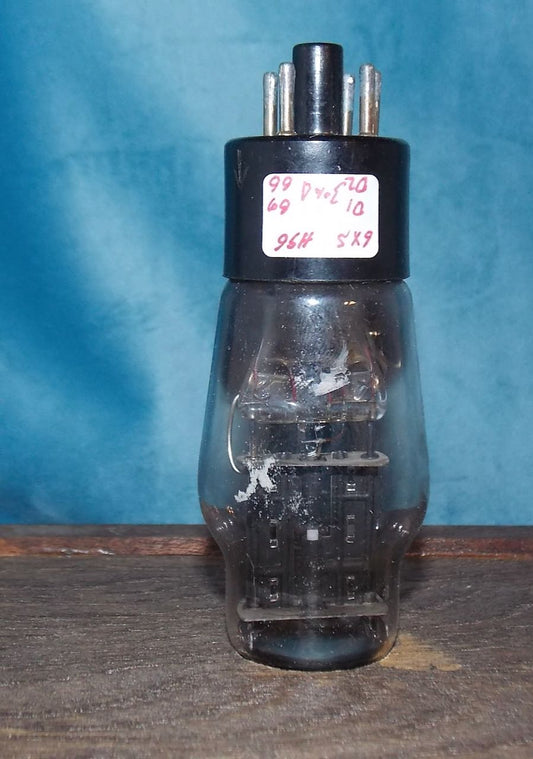

6X5G, TUNGSRAM, SMUDGED PRINT, GPO, DOLLIS HILL STORES, 1951

6X5G, TUNGSRAM, SMUDGED PRINT, GPO, DOLLIS HILL STORES, 1951
6X5G, TUNGSRAM, TOTTENHAM, PRE 1954 MANUFACTURE FOR ARMY, ZA3494

6X5G, TUNGSRAM, TOTTENHAM, PRE 1954 MANUFACTURE FOR ARMY, ZA3494

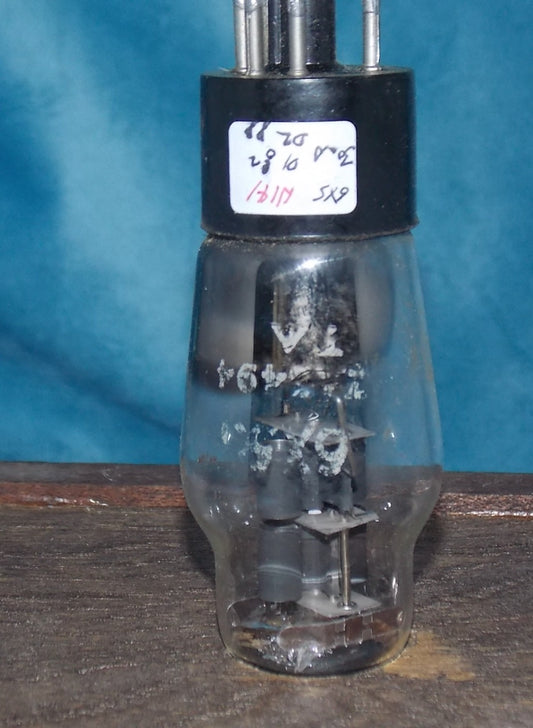

6X5G, TUNGSRAM, ZA3494

6X5G, TUNGSRAM, ZA3494

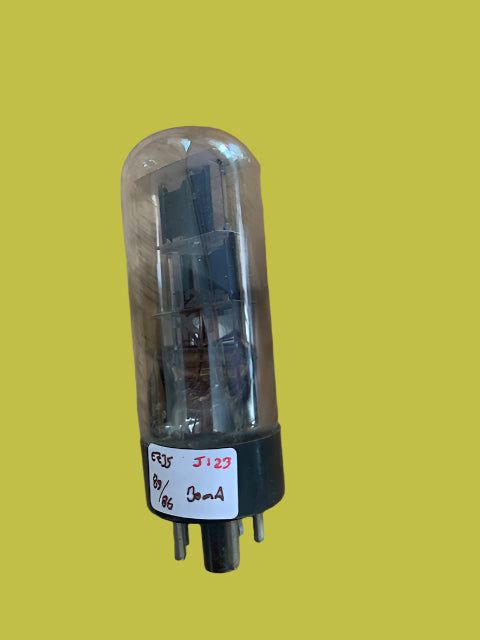

EZ35, MULLARD, BLACK BASE, WHITE PRINT, 1295 K1, FLEETWOOD SATELLITE 1951 PRODUCTION, 6X5

EZ35, MULLARD, BLACK BASE, WHITE PRINT, 1295 K1, FLEETWOOD SATELLITE 1951 PRODUCTION, 6X5

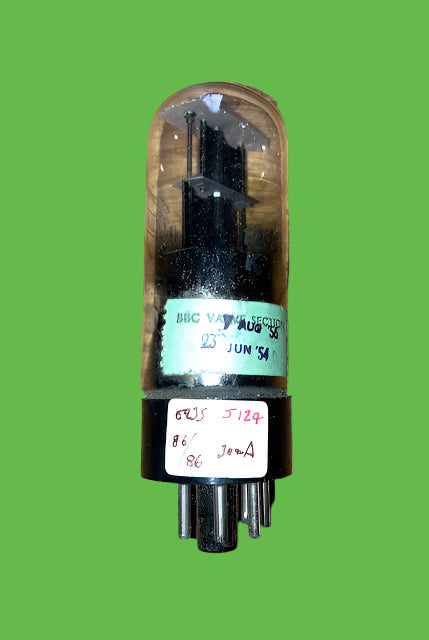

EZ35, MULLARD, BLACK BASE, WHITE PRINT, 1295 K1, FLEETWOOD SATELLITE 1951 PRODUCTION, EX BBC VALVE STORES, 6X5

EZ35, MULLARD, BLACK BASE, WHITE PRINT, 1295 K1, FLEETWOOD SATELLITE 1951 PRODUCTION, EX BBC VALVE STORES, 6X5
