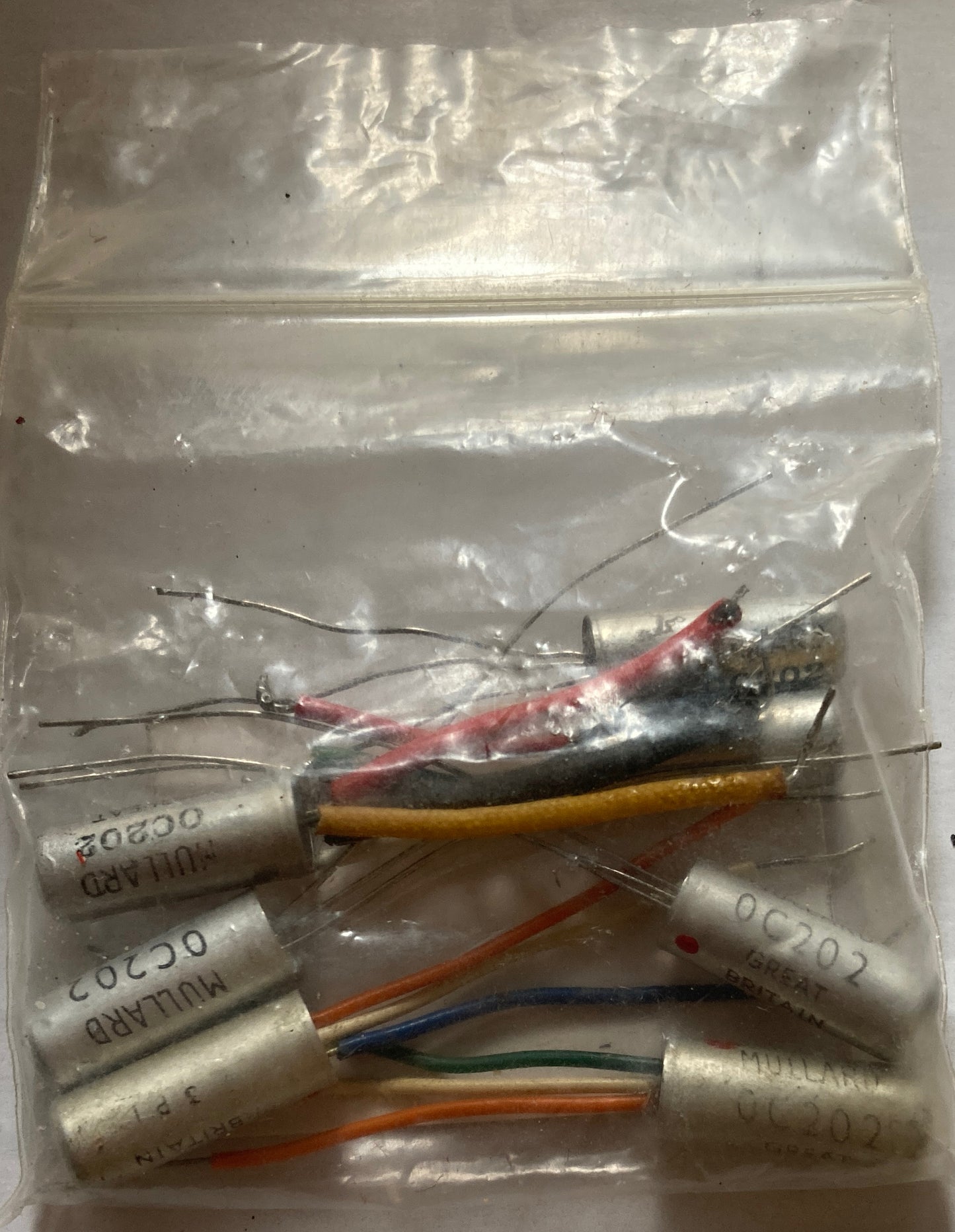

PACK OF 7X, OC202, MULLARD, FUZZ, SILICON PNP, TRANSISTOR, T07

PACK OF 7X, OC202, MULLARD, FUZZ, SILICON PNP, TRANSISTOR, T07

PNP Silicon transistor in a classic TO-7 case  (aluminium cover over standard Mullard glass test tube)

Originally manufactured in the late 50’s/early 60’s and supplied to Plessey Radar Ltd.

Type Designator: OC202

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 15 V

Maximum Collector-Emitter Voltage |Vce|: 10 V

Maximum Emitter-Base Voltage |Veb|: 10 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 110 °C

Transition Frequency (ft): 3.2 MHz

Collector Capacitance (Cc): 50 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Package: TO7
