Ladderline Antenna, Chicken Ladder, Insulator, IS150, , DX-Wire Germany, NOS, sold singly
Ladderline Antenna, Chicken Ladder, Insulator, IS150, , DX-Wire Germany, NOS, sold singly
dx-wire germany
Regular price
£1.25 GBP
Regular price
Sale price
£1.25 GBP
Quantity
Couldn't load pickup availability
Ladderline Antenna, Chicken Ladder, Insulator, IS150, , DX-Wire Germany, NOS, sold singly

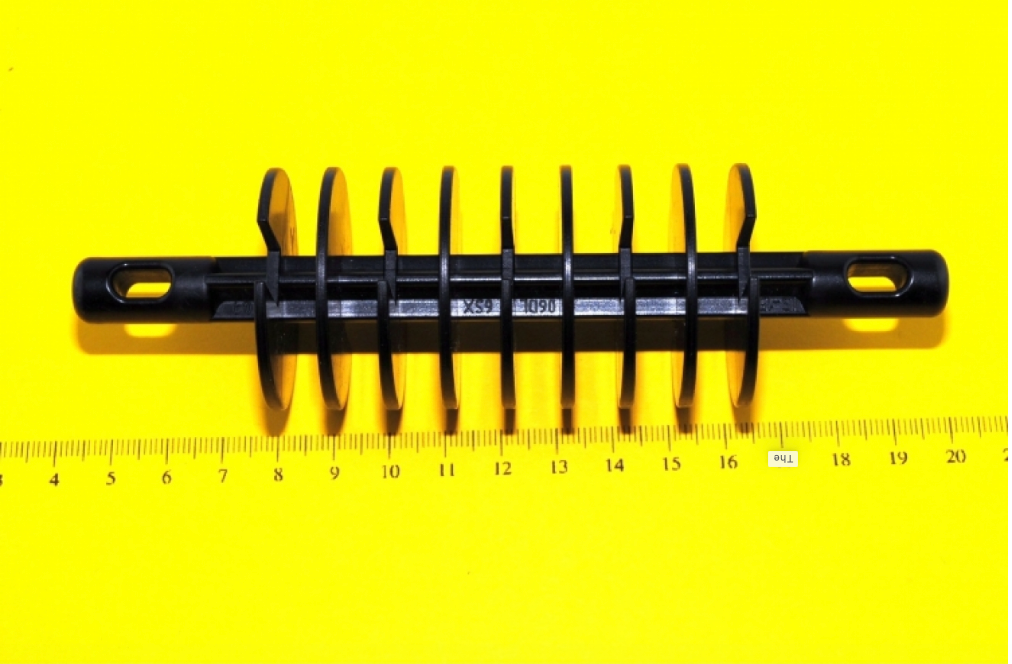

This isolator IS-150 is a universal component, which can be used on the one hand as a high-voltage insulator for QRO friends, on the other hand as a coil body for additional inductances in wire and vertical antennas. Especially suitable together with our spreaders SP-150 and SP-200.
It is used in our standard material (ABS/PC) in black as an insulator or coil body for wire antennas.
| Material IS-150 | Bayer Bayblend T65 (ABS/PC) listed by UL-94 (USA) | ||
| Color IS-150 | black | ||
| Temperature resistance | -50°C to +90°C | ||
| UV resistance | Yes | ||
| Weight | 40g | ||
| Length insulator | 150mm | ||
| Diameter inside (rod) | 12 mm | ||
| Outer diameter | 42 mm | ||
| Hanging hole/sloot | 15mm x 5mm |
