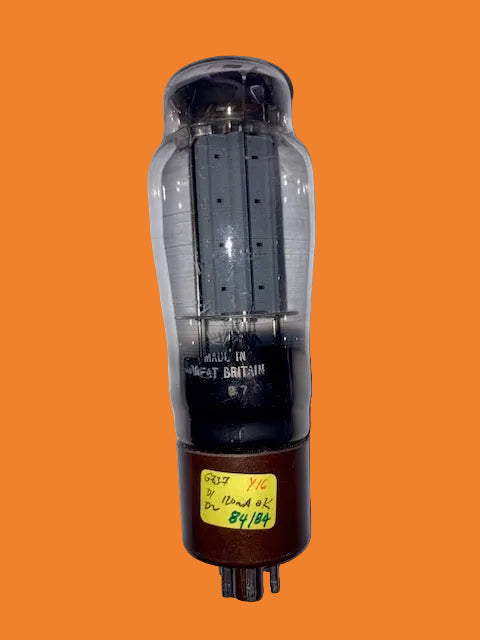

GZ37, MULLARD, IS2 B7C2, BLACKBURN PRODUCTION, MARCH 1967, WHITE PRINT

GZ37,  MULLARD, IS2 B3L2 BLACKBURN  PRODUCTION, NOVEMBER 1963, YELLOW PRINT,

Print is limited.

Device test data: Ia = 120.0mA range, GOOD  A1 84/ A2 84.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range.  This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100.  The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range on our VCM163
