GEC, SX761, Surge Limiting Diode, Vintage From 1962
Move your mouse over image or click to enlarge

GEC, SX761, Surge Limiting Diode, Vintage From 1962

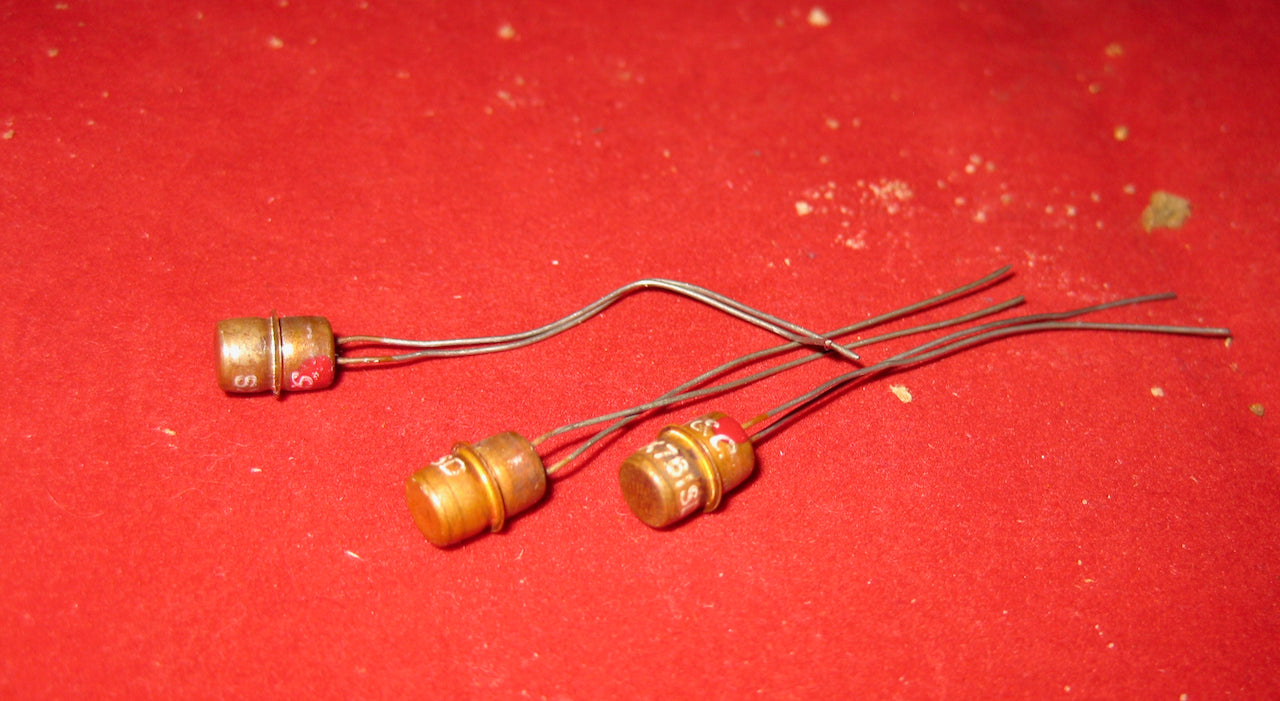

SX761 Surge limiting diode small copper pressure cooker can version with red paint.
200mA max forward current
1.5V forward voltage at 100mA
10uA reverse current at PIV
Breakdown voltage at 1mA 25degC 30-45V
