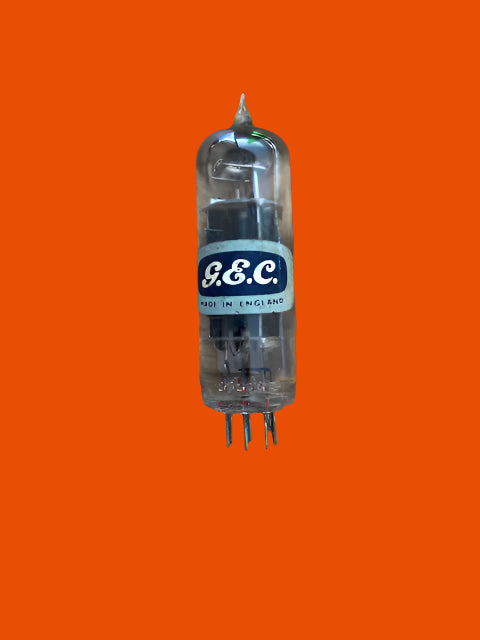

CV4005, GEC, MIL SPEC 6X4, WHITE PRINT, HAMMERSMITH MARCH 1964 PRODUCTION

CV4005, GEC, MIL SPEC 6X4, WHITE PRINT, HAMMERSMITH MARCH 1964 PRODUCTION

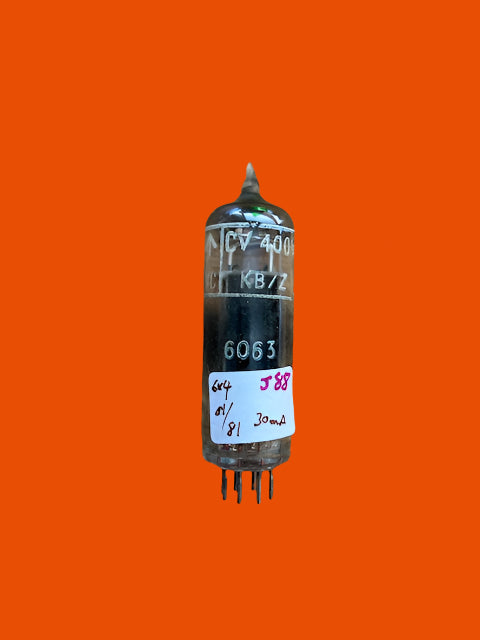

Device test data: Ia = 30.0mA range, GOOD  A1 81 / A2 81.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range.  This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100.  The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range obtained.
