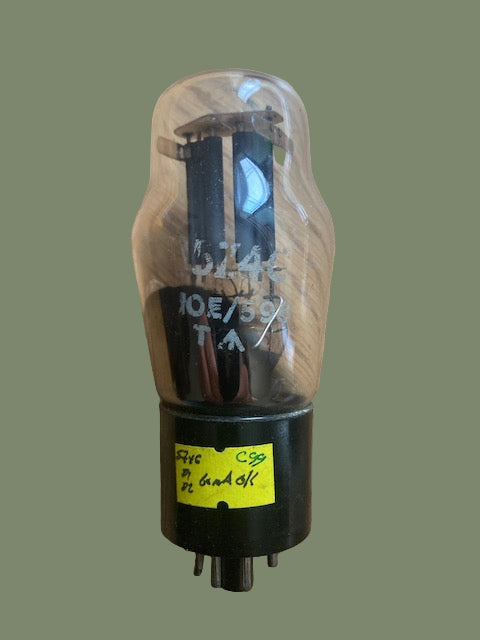

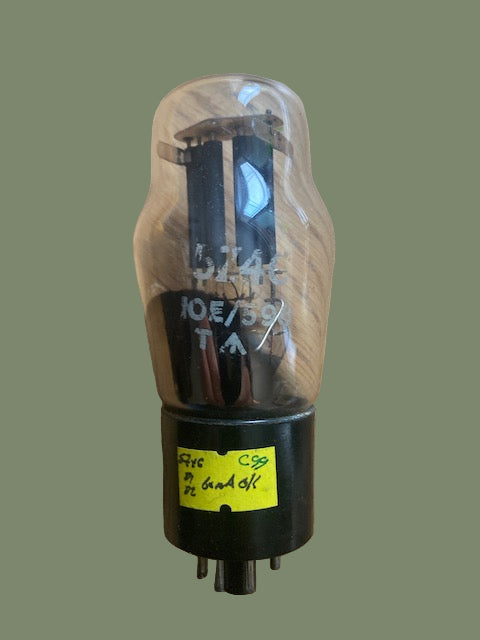

5Z4G, TUNGSRAM , FOR AIR MINISTRY, 10E/598, TOTTENHAM PRE 1953 MANUFACTURE, 5Z4

 5Z4G, TUNGSRAM , FOR AIR MINISTRY, 10E/598, TOTTENHAM PRE 1953 MANUFACTURE, 5Z4MANUFACTURE

Device test data: Ia = 60.0mA range, GOOD  A1 85 / A2 85.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range.  This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100.  The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range observed.
