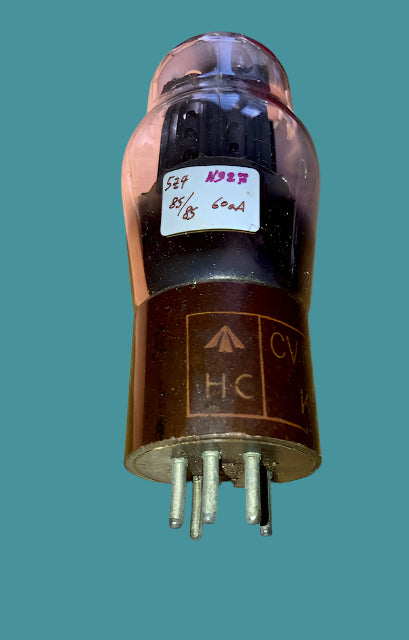

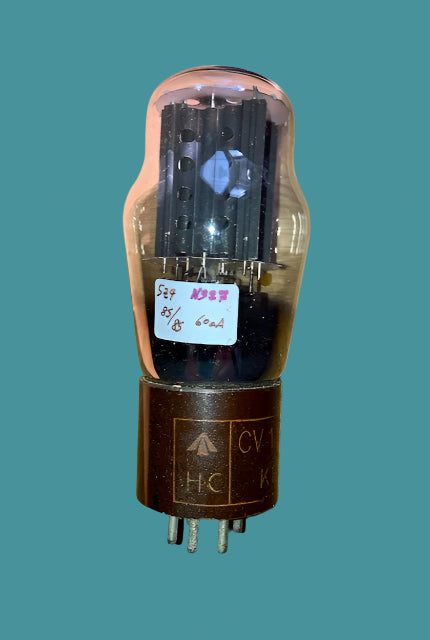

CV1863, MIL SPEC 5Z4G, STC, FOOTSCRAY, ORANGE BASE PRINT, BROWN MICANOL BASE, BROKEN SPIGOT, MARCH 1952 MANUFACTURE
Move your mouse over image or click to enlarge
CV1863, MIL SPEC 5Z4G, STC, FOOTSCRAY, ORANGE BASE PRINT, BROWN MICANOL BASE, BROKEN SPIGOT, MARCH 1952 MANUFACTURE CV1863, MIL SPEC 5Z4G, STC, FOOTSCRAY, ORANGE BASE PRINT, BROWN MICANOL BASE, BROKEN SPIGOT, MARCH 1952 MANUFACTURE

CV1863, MIL SPEC 5Z4G, STC, FOOTSCRAY, ORANGE BASE PRINT, BROWN MICANOL BASE, BROKEN SPIGOT, MARCH 1952 MANUFACTURE

Only 1 left!

CV1863, MIL SPEC 5Z4G, STC, FOOTSCRAY, ORANGE BASE  PRINT, BROWN MICANOL BASE, BROKEN SPIGOT, MARCH 1952 MANUFACTURE

Device test data: Ia = 60.0mA range, GOOD  A1 85 / A2 85.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range.  This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100.  The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range observed.
