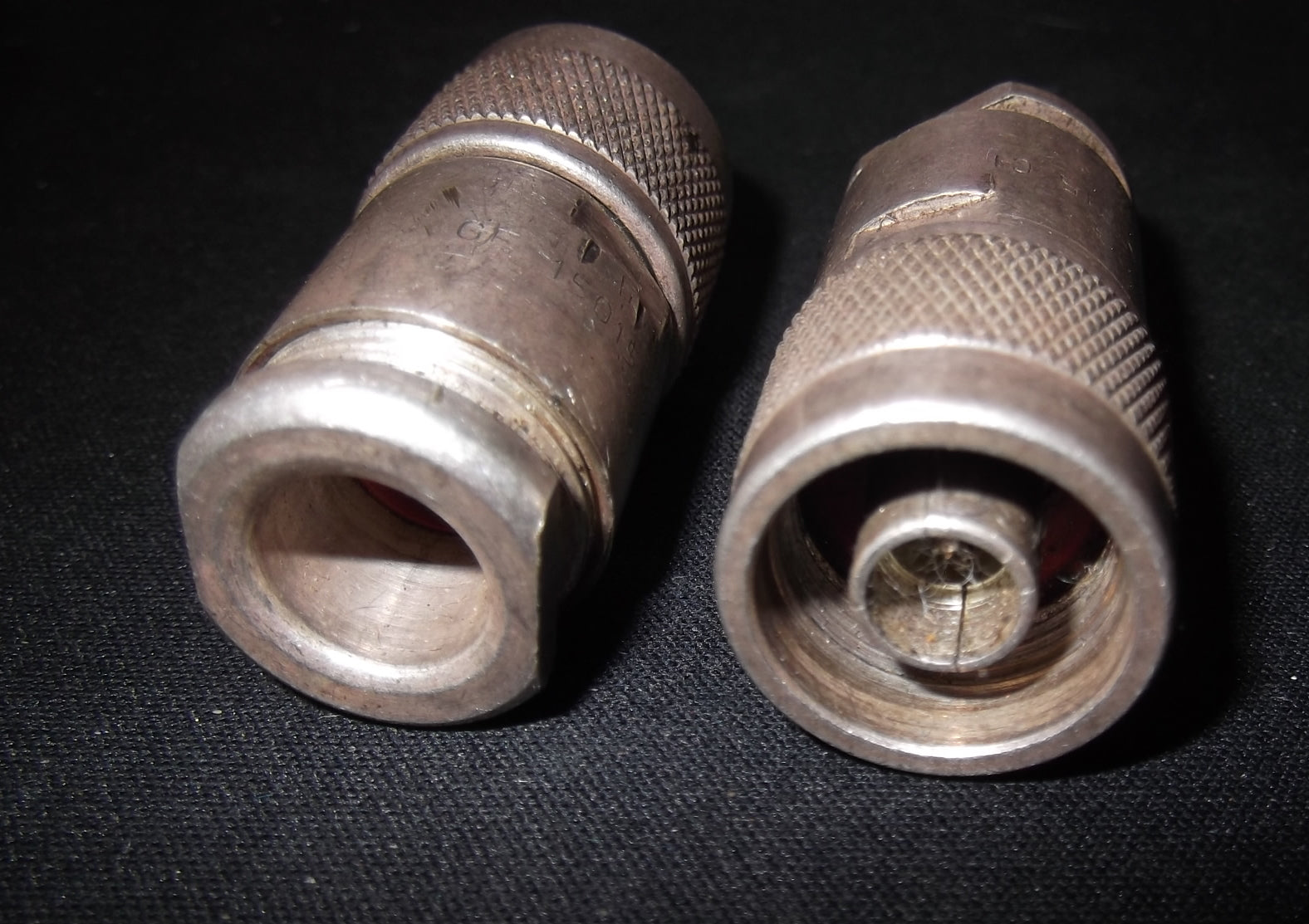

GREENPAR, GE 115015C1, N TYPE PLUG, SOLDER CLAMP,
Move your mouse over image or click to enlarge

GREENPAR, GE 115015C1, N TYPE PLUG, SOLDER CLAMP,

  • £3.50

Only 2 left!

N TYPE PLUG, SOLDER CLAMP PRESSURE SLEEVE TOP HAT TERMINATION CABLE CLAMP WITH CAPTIVE CONTACT


ALTERNATIVE TO N15A14J001X99 AND N15A14J004X99 15015C1 15015C4 CABLE GROUP 001 AND 004. OUR CONNECTOR ACCEPTS BOTH CABLE GROUPS. PSF1/4M, RG8A/U, RG9B/U, RG165, RG213/U, RG214/U, RG225, RG393, URM 67, URM91.



The N connector is a threaded, weatherproof connector, used to join coaxial cables. It was one of the first coaxial connectors with the ability to carry microwave-frequency signals. The connector was invented in the 1940s by Paul Neill of Bell Labs, and this is where the connector gets its name.

The connector was designed to carry signals at frequencies up to 1 GHz and was used in military applications, but now the N connector will easily handle frequencies up to 11 GHz. The male connector is hand-tightened and has an air gap between the centre and outer conductors. The coupling has a 5/8-24 thread. The centre coaxial contacts are identical to TNC and BNC connectors.
