CINCH, JONES, BEAU, MOLEX, P-312-AB 38330-0112, POWER PLUG, 12PIN, DRAKE TR4, KENWOOD TS-520, SWAN 350, YAESU FT-101

CINCH, JONES, BEAU, MOLEX, P-312-AB 38330-0112, POWER PLUG, 12PIN, DRAKE TR4, KENWOOD TS-520, SWAN 350, YAESU FT-101

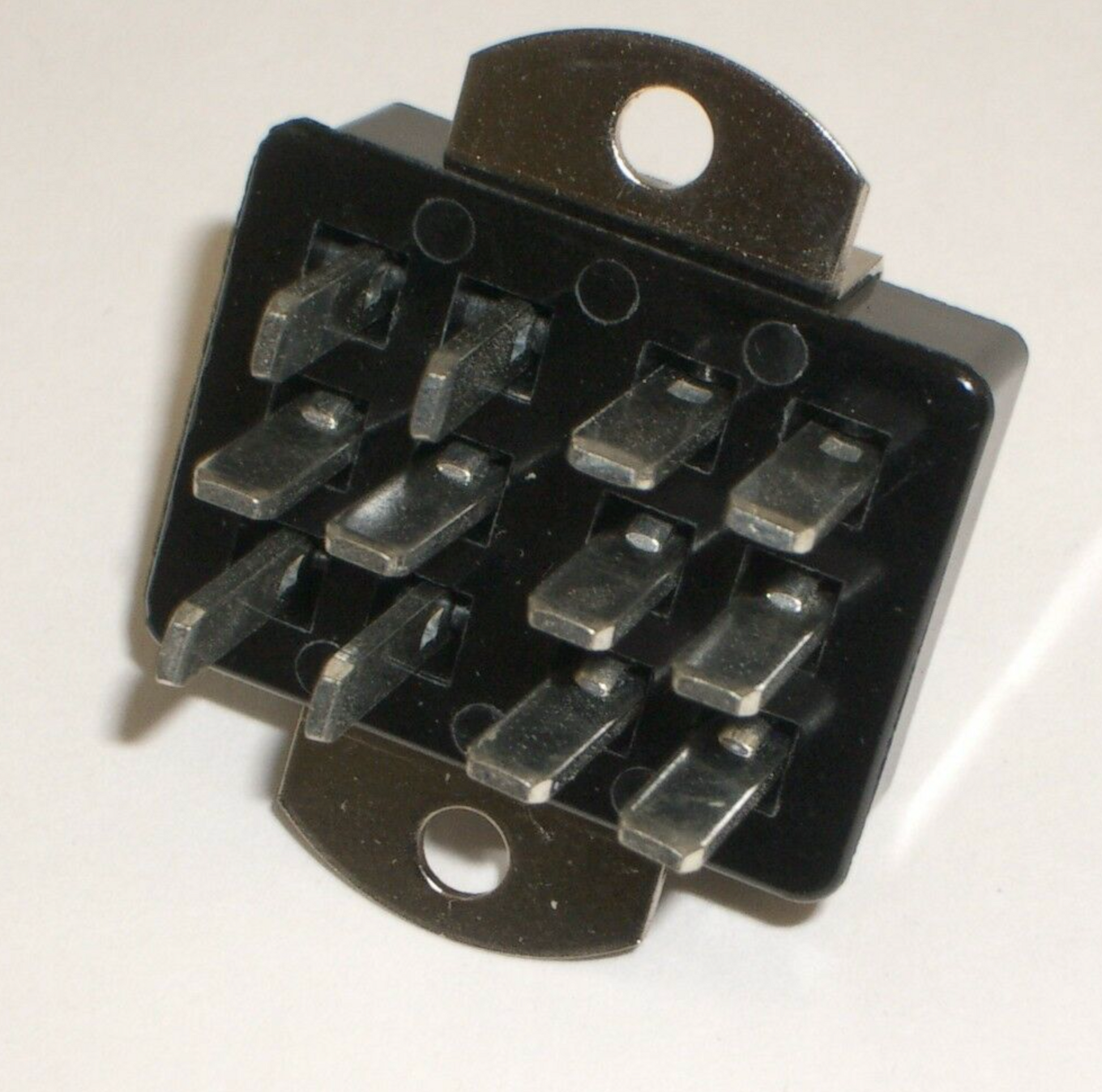

12 Pin Cinch Jones Plug (P-312-AB) [or Molex Beau P-3312-AB] connector panel mount with angle bracket. Four blades are vertical and eight horizontal to provide polarity. The connector can be wired as an AC or DC power. The socket measures 1.25in(L) x  0.938in(W). Distance between bracket mounting holes if 1.25in. This connector is commonly used as the power connector on the DRAKE TR4, KENWOOD TS-520, SWAN 350, YAESU FT-101

SPECIFICATIONS:  *Orthogonal blades to prevent wrong-way insertion; Plugs have projecting flat blades, sockets have recessed twin blades, Plug prongs are .156" wide x .047"thick, Solder lugs terminals with wiring holes .093" x .062"* Moulded  black monoblock phenoliC,  Up to 150 degree Celsius  working temp,  Plug 250 VAC RMS maximum @ 10A.
