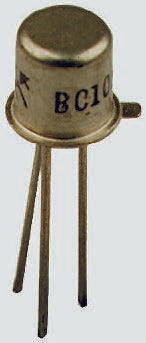

BCY70, PNP, Bipolar, Transistor, ,Silicon, 200 mA, 40 V, 3-Pin, TO-18,
BCY70, PNP, Bipolar, Transistor, ,Silicon, 200 mA, 40 V, 3-Pin, TO-18,
MULLARD MAGIC
Regular price
£0.55 GBP
Regular price
Sale price
£0.55 GBP
Quantity
Couldn't load pickup availability
BCY70, PNP, Bipolar, Transistor, ,Silicon, 200 mA, 40 V, 3-Pin, TO-18,
| Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 200 mA |
| Maximum Collector Emitter Voltage | 40 V |

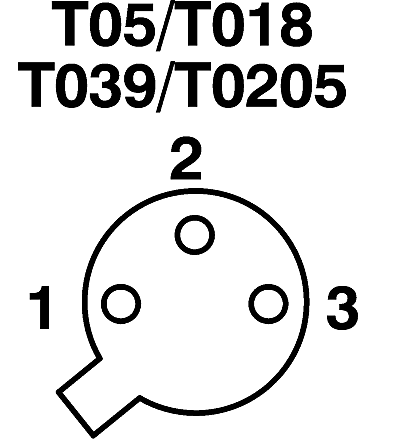

| Package Type | TO-18 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 350 mW |
| Minimum DC Current Gain | 15 |
| Maximum Collector Base Voltage | -50 V |
| Maximum Emitter Base Voltage | -5 V |
| Maximum Operating Frequency | 250 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Diameter | 5.84mm |
| Maximum Base Emitter Saturation Voltage | -0.6 V |
| Minimum Operating Temperature | -65 °C |
| Height | 5.33mm |
| Maximum Operating Temperature | +200 °C |
| Dimensions | 5.84 (Dia.) x 5.33mm |
| Maximum Collector Emitter Saturation Voltage | -0.5 V |
