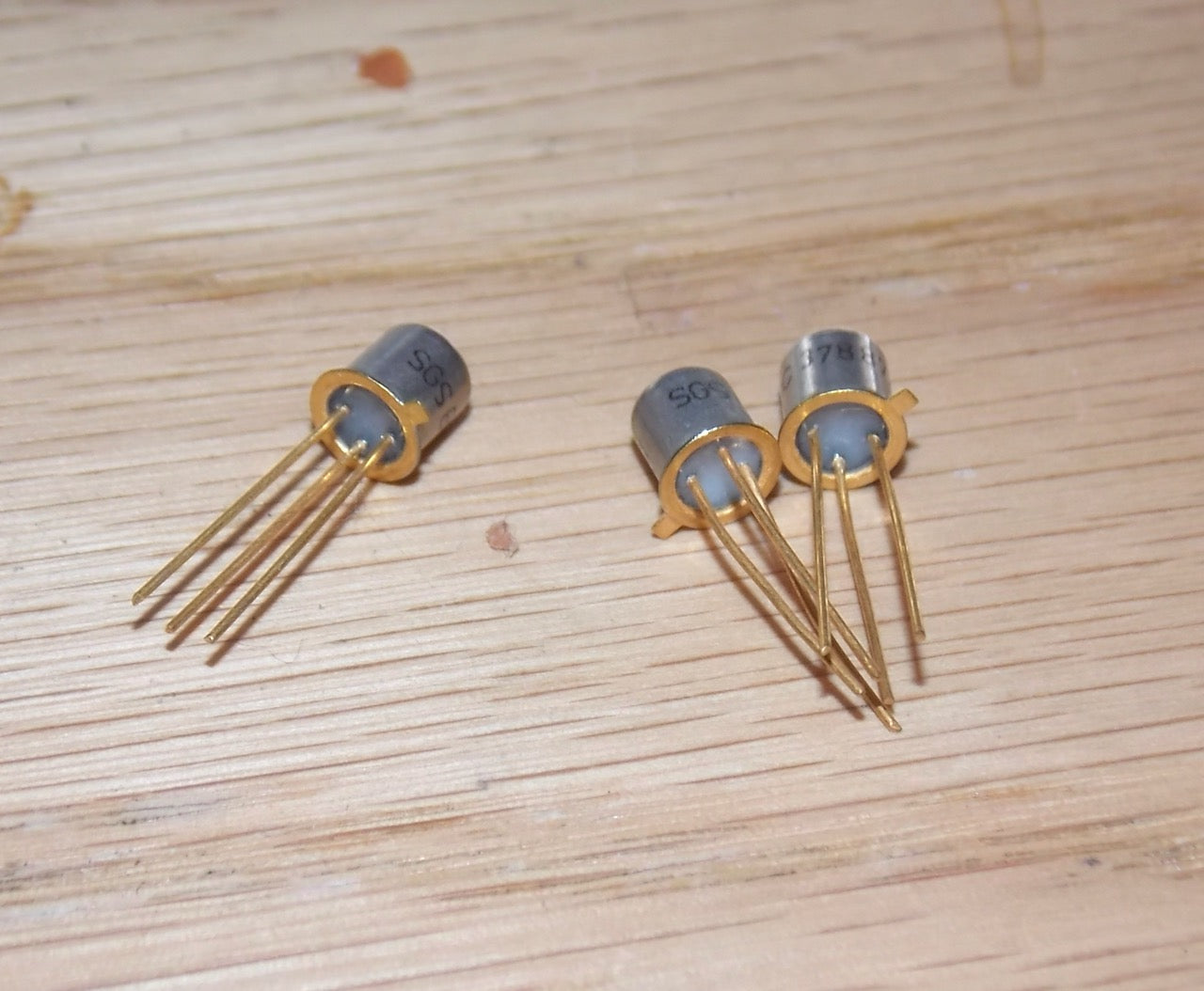

BC378, SGS, NPN, TO18, Bipolar Transistor
Move your mouse over image or click to enlarge

BC378, SGS, NPN, TO18, Bipolar Transistor

  • £1.00


  • Type: NPN
  • Collector-Emitter Voltage, max: 25 V
  • Collector-Base Voltage, max: 30 V
  • Emitter-Base Voltage, max: 6 V
  • Collector Current − Continuous, max: 1.2 A
  • Collector Dissipation: 0.375 W
  • DC Current Gain (hfe): 75 to 260
  • Transition Frequency, min: 300 MHz
  • Operating and Storage Junction Temperature Range: -65 to +175 °C
  • Package: TO-18
BC378, SGS, NPN, TO18, Bipolar Transistor
