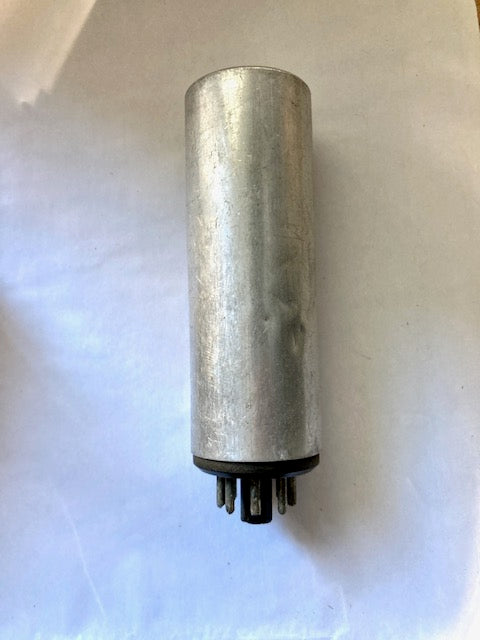

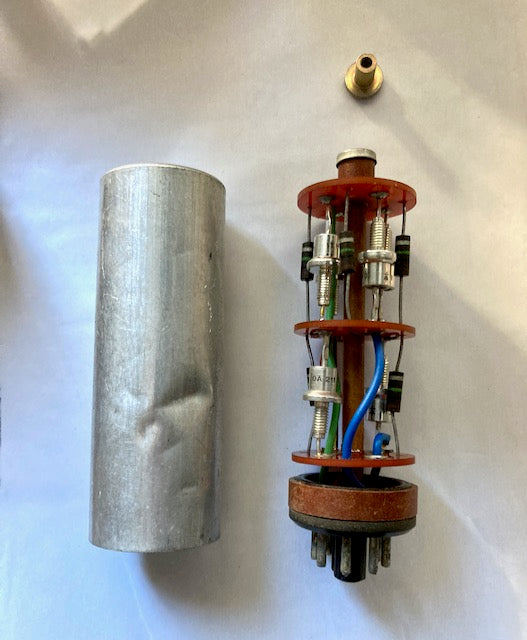

5U4G, Octal Based, Solid State Rectifier, based on OA211 Rectifier Diodes, 500V 0.5A, Working

5U4G, Octal Based, Solid State Rectifier, based on OA211 Rectifier Diodes 500V 0.5A, Working

Device test data: Ia = 180.0mA range, GOOD  A1 100/ A2 100.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range.  This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100.  The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range obtained.
