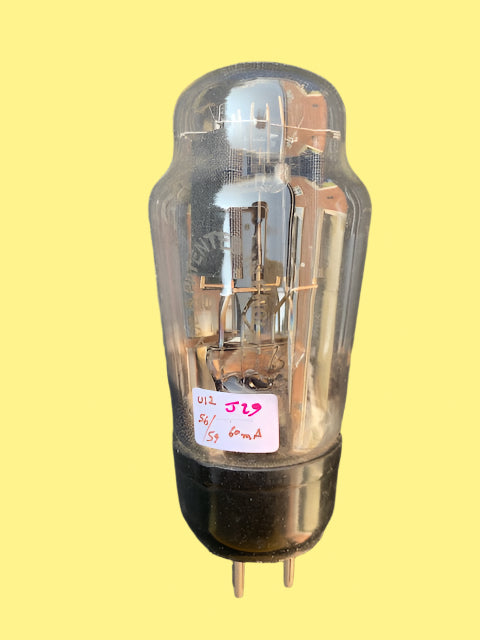

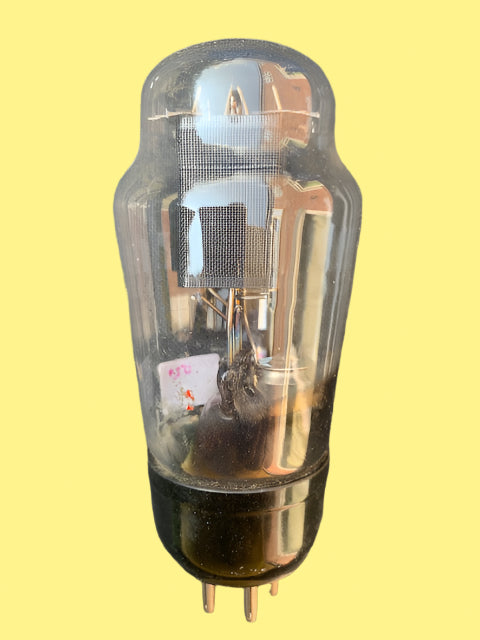

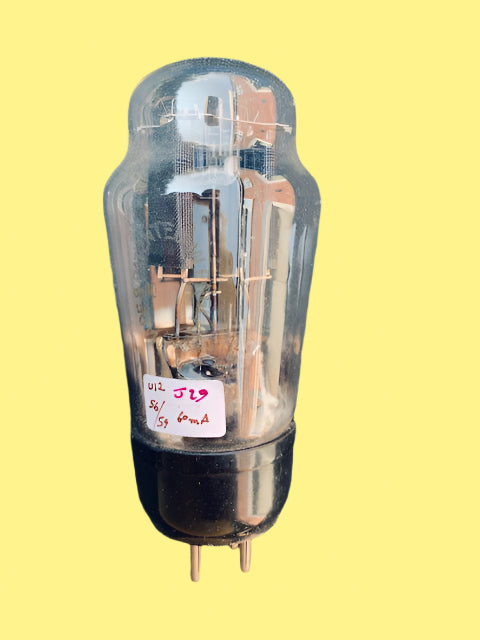

U12, GEC, MESH PLATE, BLACK BASE, HAMMERSMITH, 1940 PRODUCTION, UU5, UU120/350,  UU60/250, UU120/500, U10, U14, APV4, DW4-500, DW2, DW4-350, CV1039, CV3760, IW4-350, IW4-500, MU12, MU14, R42, 431U, 441U, 442BU, 460BU, RECTIFIER

Move your mouse over image or click to enlarge

U12, GEC, MESH PLATE, BLACK BASE, HAMMERSMITH, 1940 PRODUCTION, UU5, UU120/350, UU60/250, UU120/500, U10, U14, APV4, DW4-500, DW2, DW4-350, CV1039, CV3760, IW4-350, IW4-500, MU12, MU14, R42, 431U, 441U, 442BU, 460BU, RECTIFIER

£92.00

Device test data: Ia = 60.0mA range, GOOD A1 56 / A2 59.

We test our rectifiers using a calibrated and standardised AVO VCM163 on the specified range. This VCM gives a qualitative estimation of emission as you can see from the photo, the GOOD range bar runs below the numerical uA/Ig scale with the GOOD range between 51 - 100. The above device test data, shows the max current range specified and a record of the numerical reading within the GOOD range obtained.
