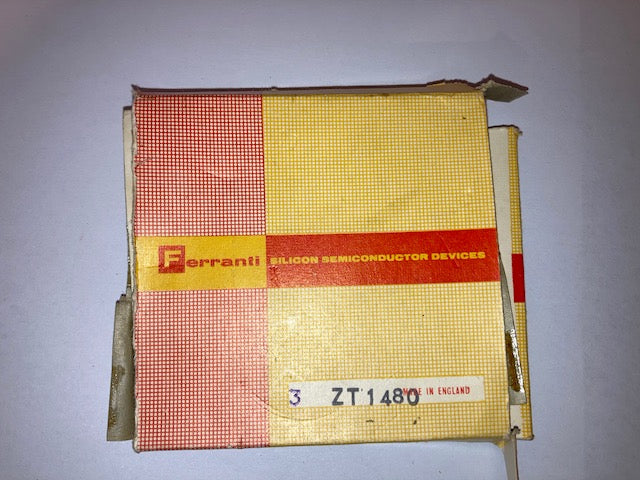

ZT1480, Ferranti, Transistor Silicon, NPN, CV7452
ZT1480, Ferranti, Transistor Silicon, NPN, CV7452
FERRANTI
Regular price
£3.95 GBP
Regular price
Sale price
£3.95 GBP
Quantity
Couldn't load pickup availability
ZT1480, Ferranti, Transistor Silicon, NPN, CV7452

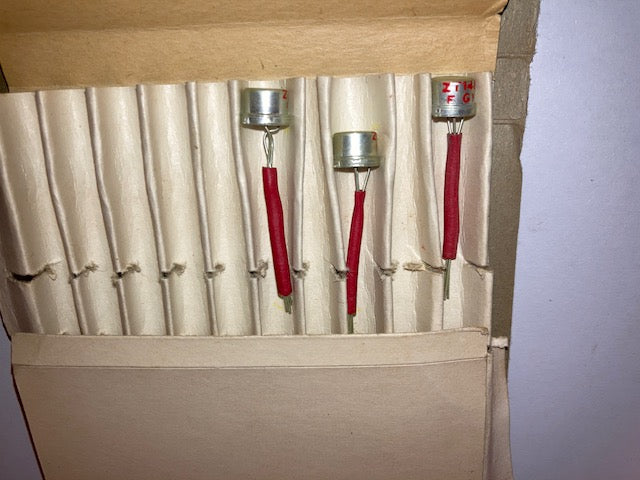

THE FERRANTI ZT1480 is a vintage NPN silicon transistor that was manufactured by the British company Ferranti. It is part of the ZT80-ZT180 series of general-purpose transistors.
Key Specifications
- Transistor Type: NPN.
- Maximum Collector-Base Voltage (VCBO): 100 volts.
- Maximum Collector-Emitter Sustaining Voltage (VCEO(sus)): 40 volts.
- Maximum Collector Current (IC): 1.5 amps.
- Maximum Power Dissipation (Ptot): 55 watts (at 25°C case temperature).
- hFE (DC Current Gain): Minimum of 1.5 (typical values will be higher).
- Configuration: Through-hole mounting (likely in a TO-46 or similar package, though the specific outline drawing should be consulted in the full datasheet).
Further Information and Resources
- Datasheet: A technical datasheet with full electrical characteristics can often be found on electronics component archives. A relevant series datasheet (ZT80-ZT180) is available on the Silicon Ark Electronics website.
- Military Designation: The ZT1480 also has a military CV (Common Valve) specification number, CV7452.
