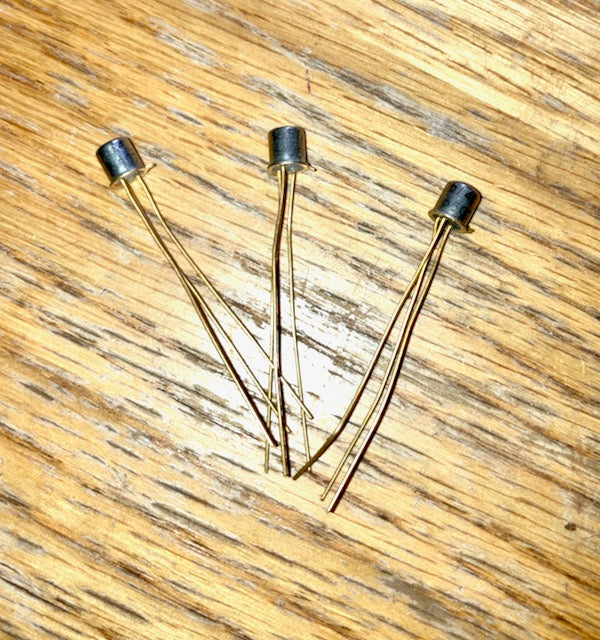

A1505/4, SGS, NPN, General Purpose Transistor, with Gold leads,
Move your mouse over image or click to enlarge

A1505/4, SGS, NPN, General Purpose Transistor, with Gold leads,

A1505/4, SGS, NPN, General Purpose Transistor, with Gold leads,


Typical device measurement:-

  • Collector-Emitter Volt (Vceo): 50V
  • Collector-Base Volt (Vbe): 0.78V
  • Test Current (Ib): 4.62mA
  • hfe: 86 @ 2.50mA
  • Leakage (Ic)0.00mA
