FLEX-B226-7/0.1, 26-conductor bonded Flat Ribbon Cable, rolling, NOS, Farnell, 150-952, DW1027791

FLEX-B226-7/0.1, 26-conductor bonded Flat Ribbon Cable, rolling, NOS, Farnell, 150-952, DW1027791

RADIOSPARES RS COMPONENTS

£2.25 GBP
£2.25 GBP
Sale Sold out

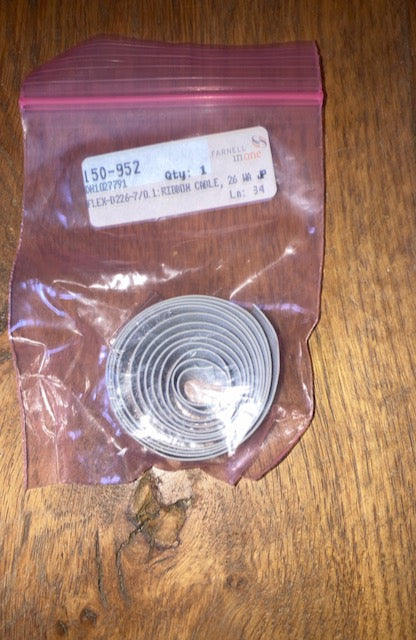

The FLEX-B226-7/0.1 is a 61m 26-conductor bonded Flat Ribbon Cable with stranded copper conductor of 30AWG wire and grey PVC jacket, 150V rated voltage. 25mil (0.635mm) pitch flat cable designed for termination with high density (1.27mm) IDC connectors. B type is bonded throughout for standard applications.


  • 358Ω/km Maximum conductor resistance
  • 1MΩ/km Minimum insulation resistance
  • 1500VAC/minute Dielectric strength
  • VW-1 Flammability rating
