HAOYU, SS-22F24-G7, DPDT, Miniature Slide Switch,
Move your mouse over image or click to enlarge
HAOYU, SS-22F24-G7, DPDT, Miniature Slide Switch, HAOYU, SS-22F24-G7, DPDT, Miniature Slide Switch,

HAOYU, SS-22F24-G7, DPDT, Miniature Slide Switch,

Only 7 left!

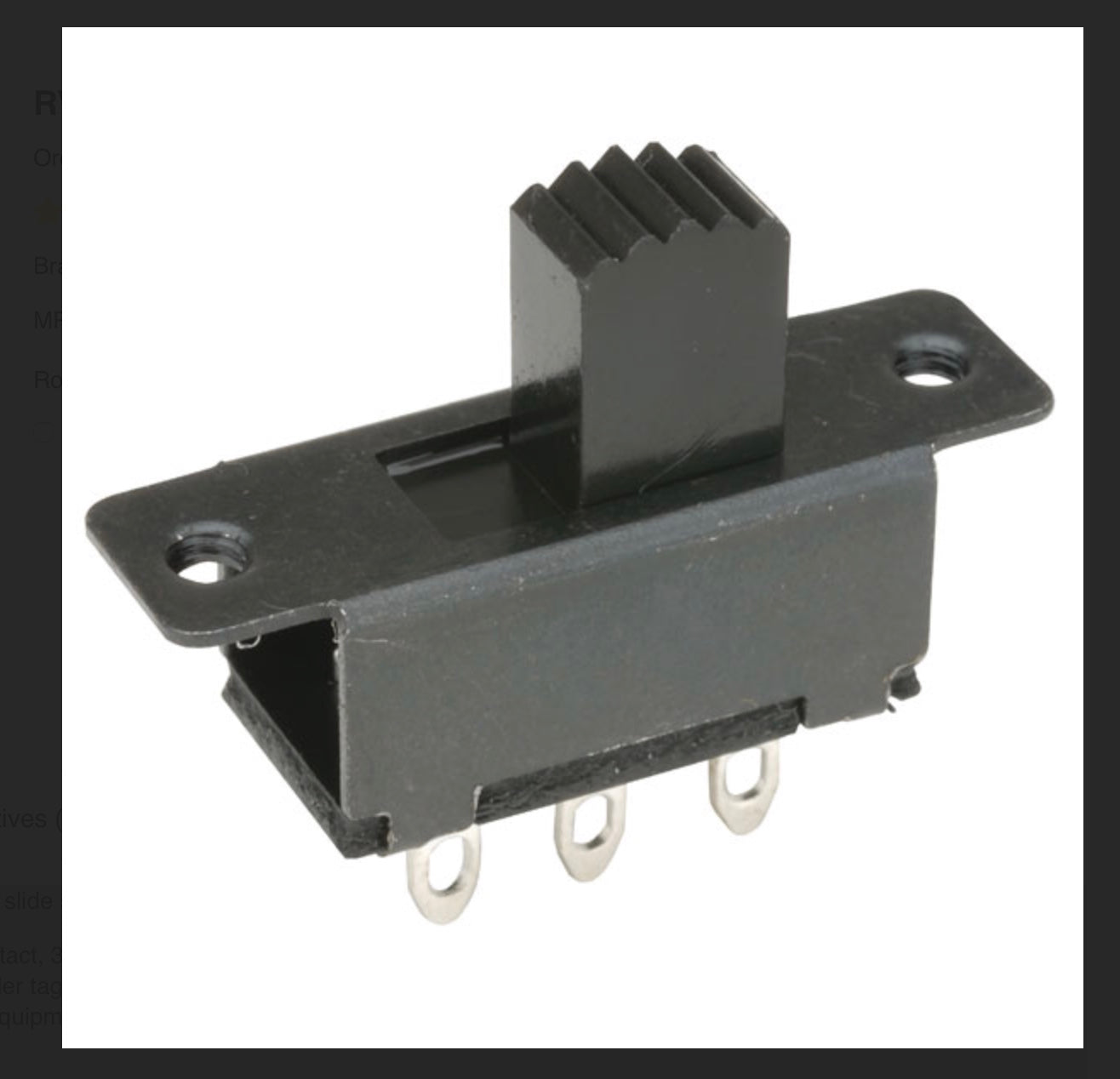

HAOYU SS-22F24-G7 DPDT Miniature Slide Switch.

DPDT Miniature Slide Switch - a miniature slide switch with solder tag connections and break before make DPDT contacts.

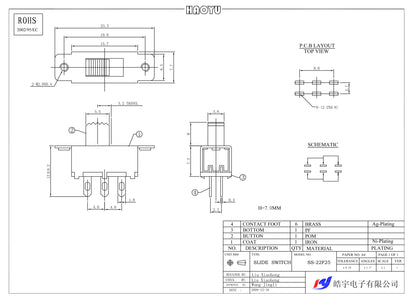

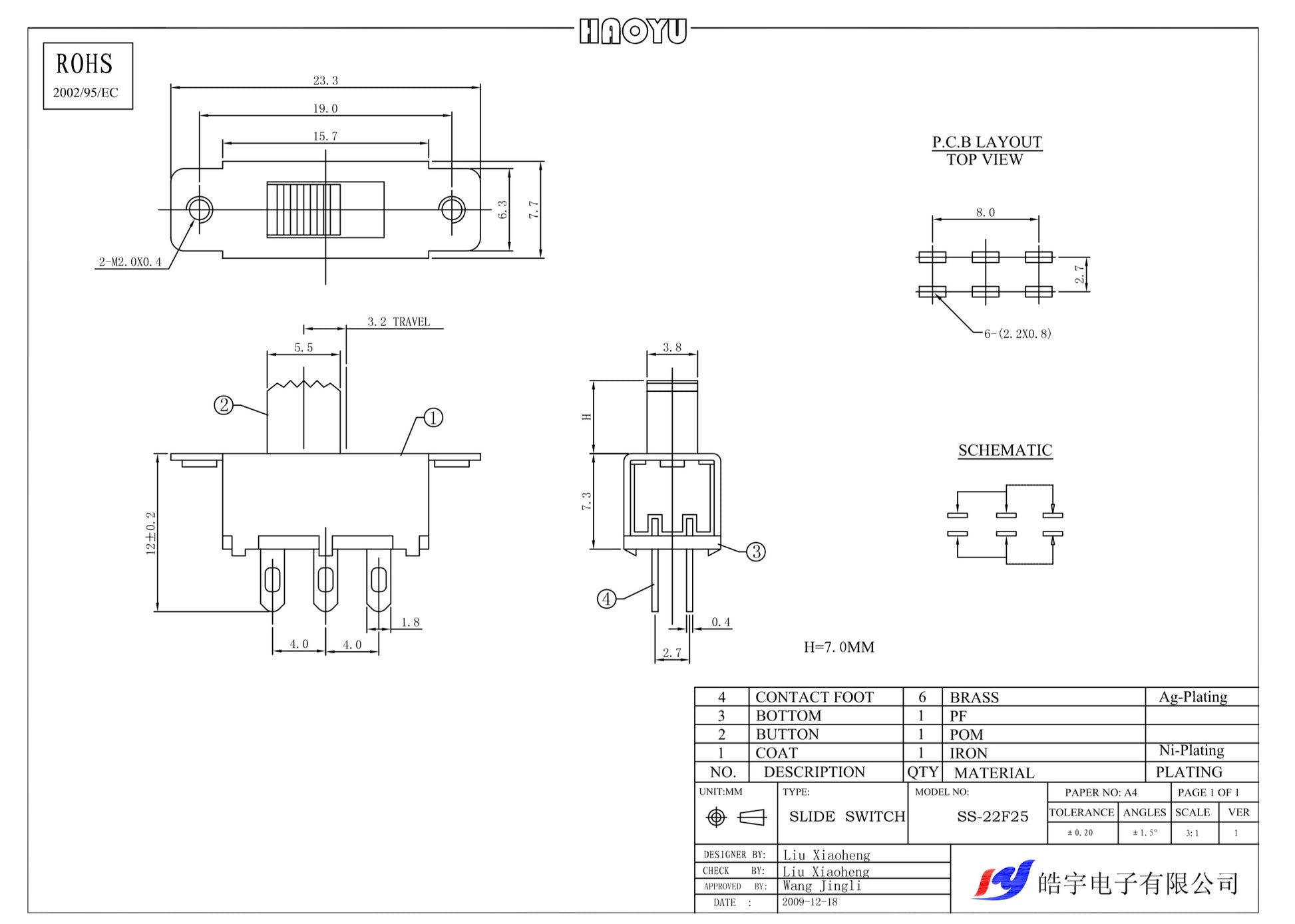

Incorporating the following features: DPDT contact, 300mA contact current, 125Vac contact voltage, solder lug terminal, 23mm long, 7.2mm wide, 14.2mm high, a miniature slide switch with solder tag connections and break before make DPDT contacts, fixing centres 19mm, 2 x M2 fixing holes, suited to a wide range of miniature electronic equipment.



  • Suited to a wide range of miniature electronic equipment
  • Contacts rated at 0.3A, 125V AC
  • Fixing centres 19mm
  • 2 x M2 fixing holes
