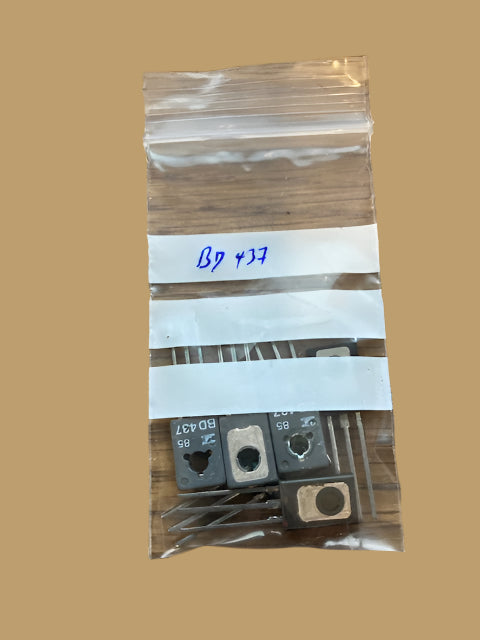

BD437, NPN, TRANSISTOR, PACK OF 5X
BD437, NPN, TRANSISTOR, PACK OF 5X
High power transistor with NPN polarity from ST, suitable for medium power linear and switching applications.
- Collector emitter breakdown voltage 45V
- Collector base breakdown voltage 45V
- Collector current 4A
- Power 36W
- Current gain 140 DC
- Transition frequency 3MHz
- TO-126 case
| Type | BD437 |
|---|---|
| Case | TO-126 |
| Collector Current Cont. | 4A |
| Collector-Emitter Voltage | 45V |
| DC Current Gain (max.) | 85 |
| Operating Temperature | 150°C |
| Power Dissipation | 36W |
| Transition Frequency | 3MHz |
