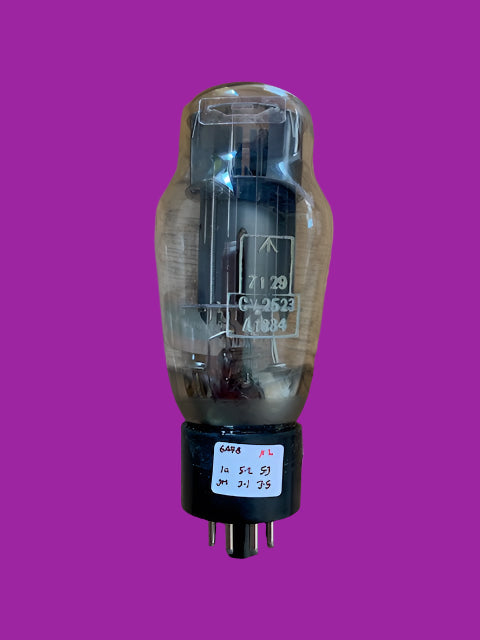

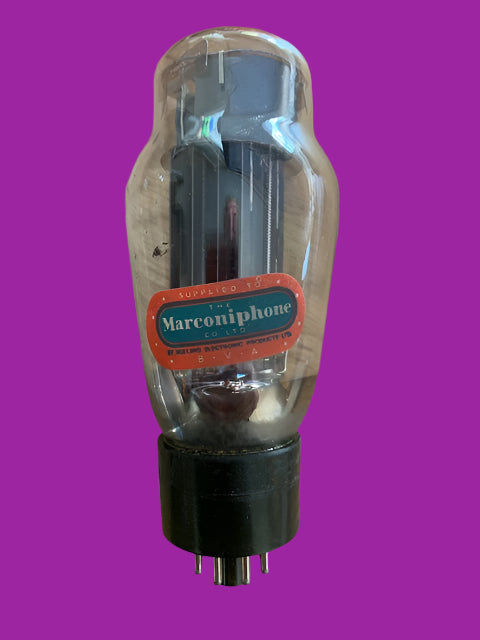

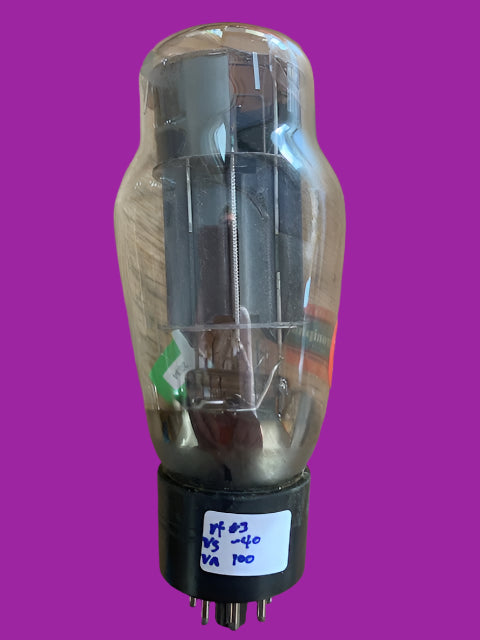

6AS7G, MARCONIPHONE, A1834 CV2523, 6080, AUGUST 1971 MANUFACTURE

Move your mouse over image or click to enlarge

6AS7G, MARCONIPHONE, A1834 CV2523, 6080, AUGUST 1971 MANUFACTURE

£45.00

6AS7G/6080 type valves are notoriously difficult to test with their high (2.5A( heater current demands and an Anode resistance (Ra) of 250R. We test against our own standardised reference valve data. Our reference valve is : -

Sylvania 6080WA

For: Vh = 6.0V; Vg=-40V: Va=100V

Nominal 100% : Anode current Ia = 33mA Mutual conductance Gm = 3.3mA/V

Test data achieved for the valve on sale:-

For: Vh = 6.0V; Vg=-40V: Va=100V

A1 Anode current Ia = 52mA; Mutual conductance Gm = 3.2mA/V

A2 Anode current Ia = 53mA; Mutual conductance Gm = 3.5mA/V
